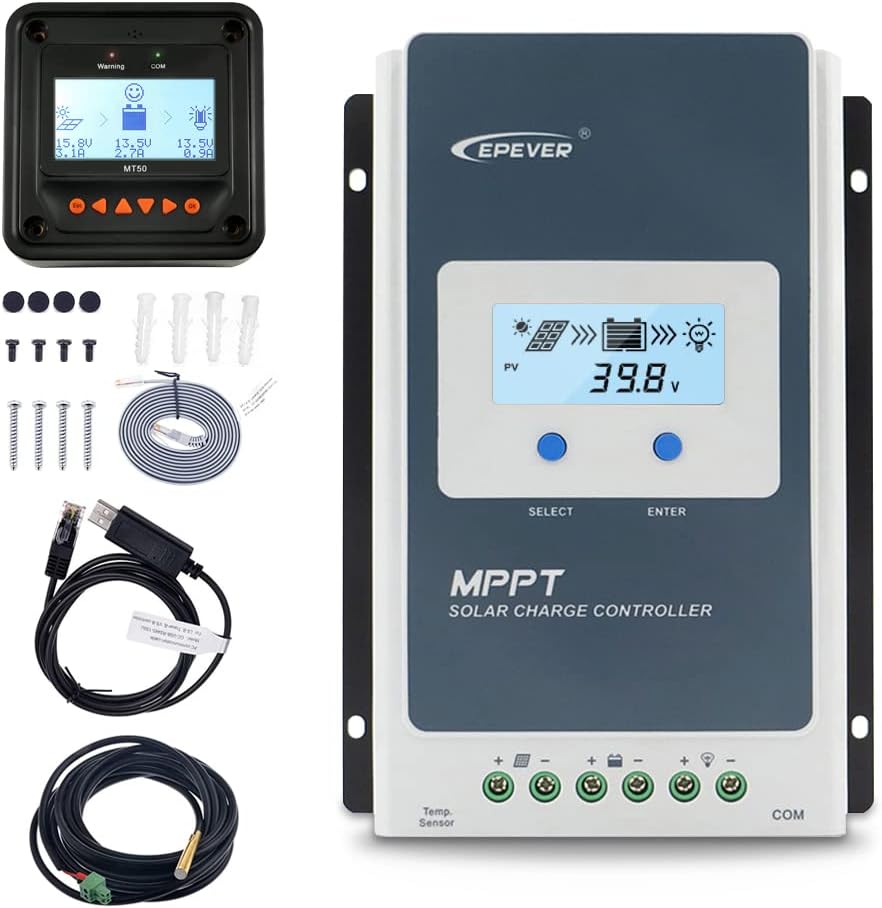

20A MPPT Solar Charge Controller 12V 24V M96783
Sale price
$30.99
Regular price $104.74
Shipping calculated at checkout.
Negative Grounding MPPT Solar Charge Controller Tracer2210AN, The advanced MPPT control algorithm makes this 10 amp MPPT controller tracking efficiency higher than 99.5%.
Built-in LCD screen displays key charging parameters. Multiple connectivity options for the controller (remote meter, mobile app, PC software etc) enable the user to personalise each charging stage, create a user-defined battery type with specific parameters and access exclusive settings.
Compatibility with multiple battery types for convenient use, support Sealed lead acid, gel, flooded, lithium and users. Suitable for solar panels up to 260W (12V battery or battery bank) or 520W (24V system). Current limiting function (10A) allows possibility of adding more solar panels in the future.
RS-485 communication bus interface and Modbus communication protocol, available to meet various communication requirements in different situations.
With Modbus communication protocol interface, full-load operation without any drop in capacity within the range of working environment temperature, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.
| Tracer2210AN+MT50+RTS+RS485 | Tracer2215BN+MT50+RTS+RS485 | Triron2210N+MT50+RTS+RS485 | Tracer6415AN+MT50+RTS | JN20A | ML2420 | |
|---|---|---|---|---|---|---|
| Charing Technology | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| Nominal system voltage | 12/24VDC or Auto | 12/24VDC or Auto | 12/24VDC or Auto | 12/24/36/48VDC or Auto | 12/24VDC or Auto | 12/24VDC or Auto |
| Rated charge current | 20A | 20A | 20A | 60A | 20A | 20A |
| Rated discharge current | 20A | 20A | 20A | 60A | 14A | 20A |
| Max. PV open circuit voltage | 100V/ 92V(25℃) | 150V/ 138V(25℃) | 100V/ 92V(25℃) | 150V/ 138V(25℃) | 20V~100V(12V system)/ 40V~100V(24V system) | 100V(25℃) 90V(-25℃) |
| Max. PV input power | 260W/12V 520W/24V | 260W/12V 520W/24V | 260W/12V 520W/24V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 240W/12V 480W/24V | 260W/12V 520W/24V |
| Battery type | Sealed(Defalut)/Gel/Flooded/User Lead-acid batteries and Lithium-ion batteries | Sealed(Defalut)/Gel/Flooded/User Lead-acid batteries | Sealed(Defalut)/Gel/Flooded/User Lead-acid batteries and Lithium-ion batteries | Sealed(Defalut)/Gel/Flooded/User Lead-acid batteries and Lithium-ion batteries | Sealed(Defalut)/Gel/Flooded/User Lead-acid batteries and Lithium-ion batteries | Sealed(Defalut)/Gel/Flooded/User Lead-acid batteries and Lithium-ion batteries |
| Grounding | Negative grounding | Negative grounding | Negative grounding | Negative grounding | Negative grounding | Negative grounding |
