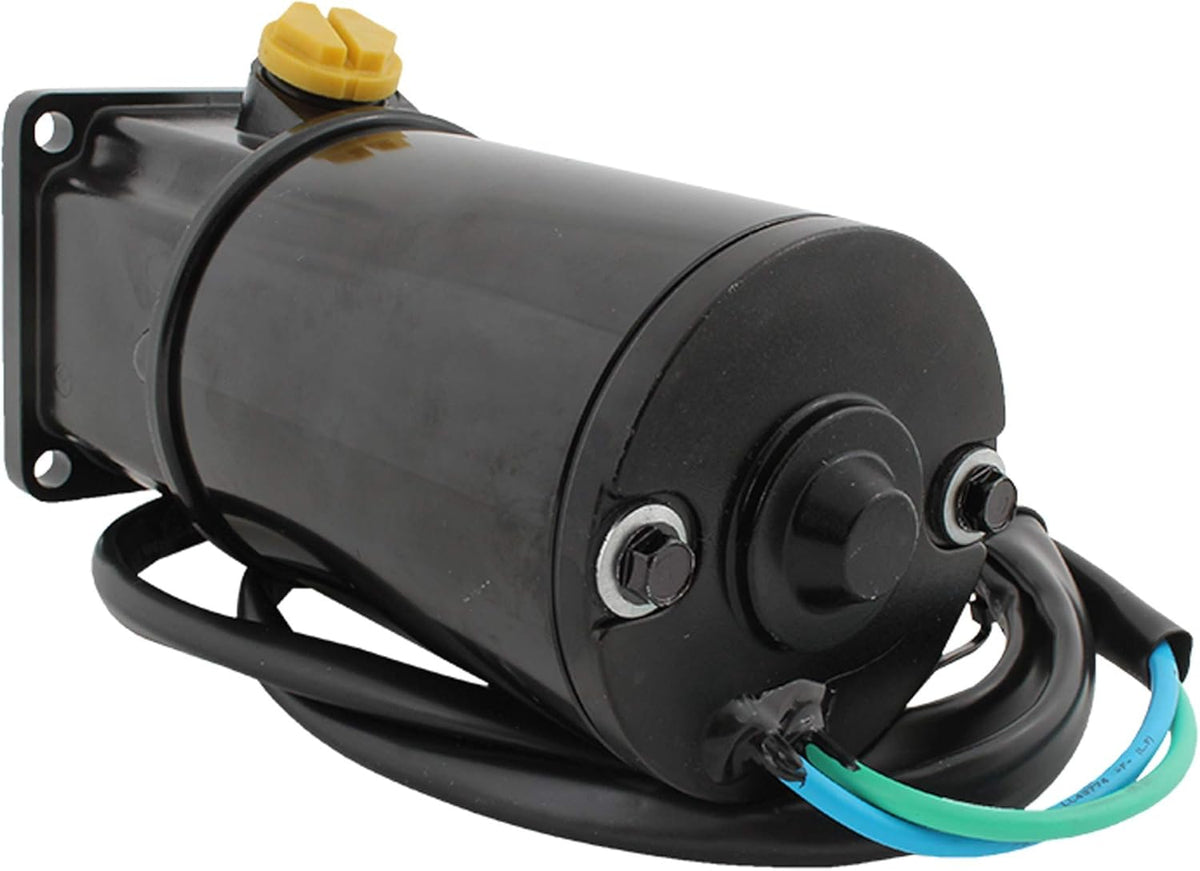

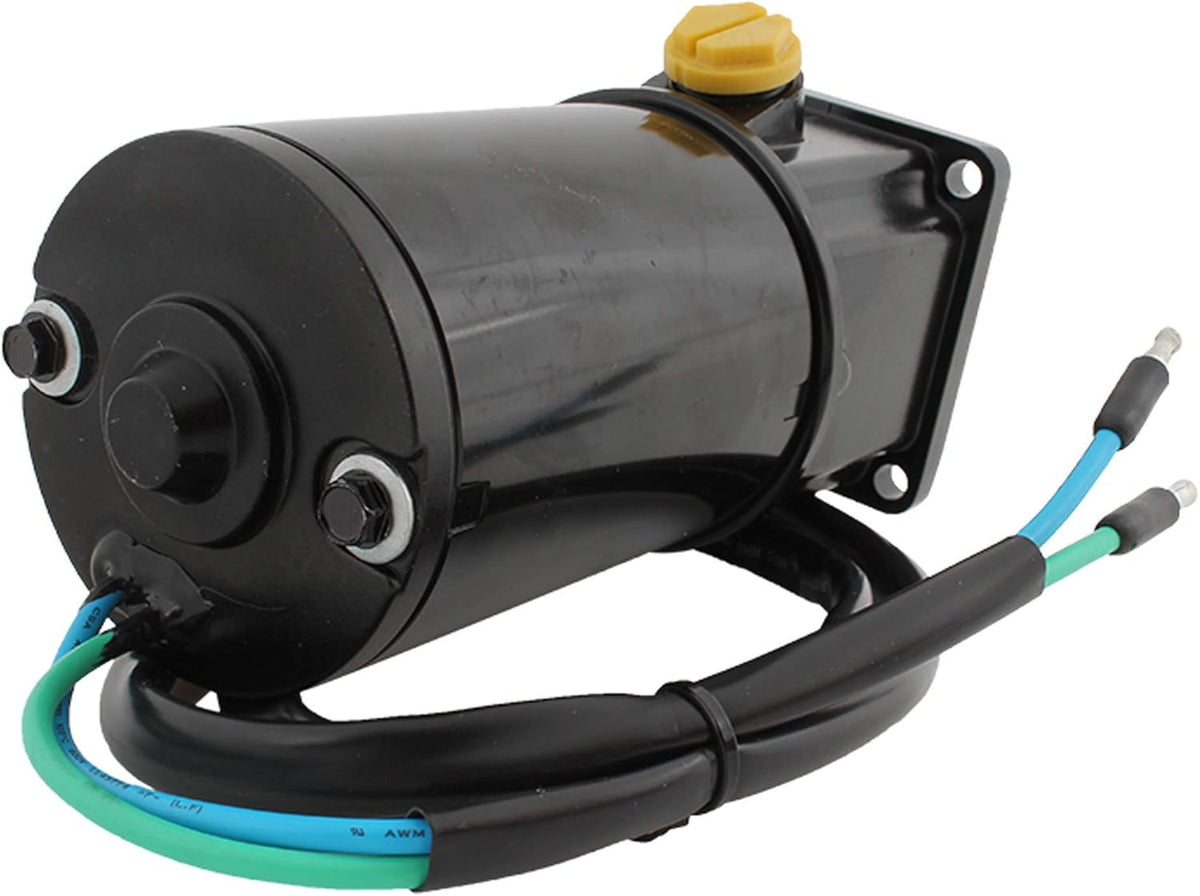

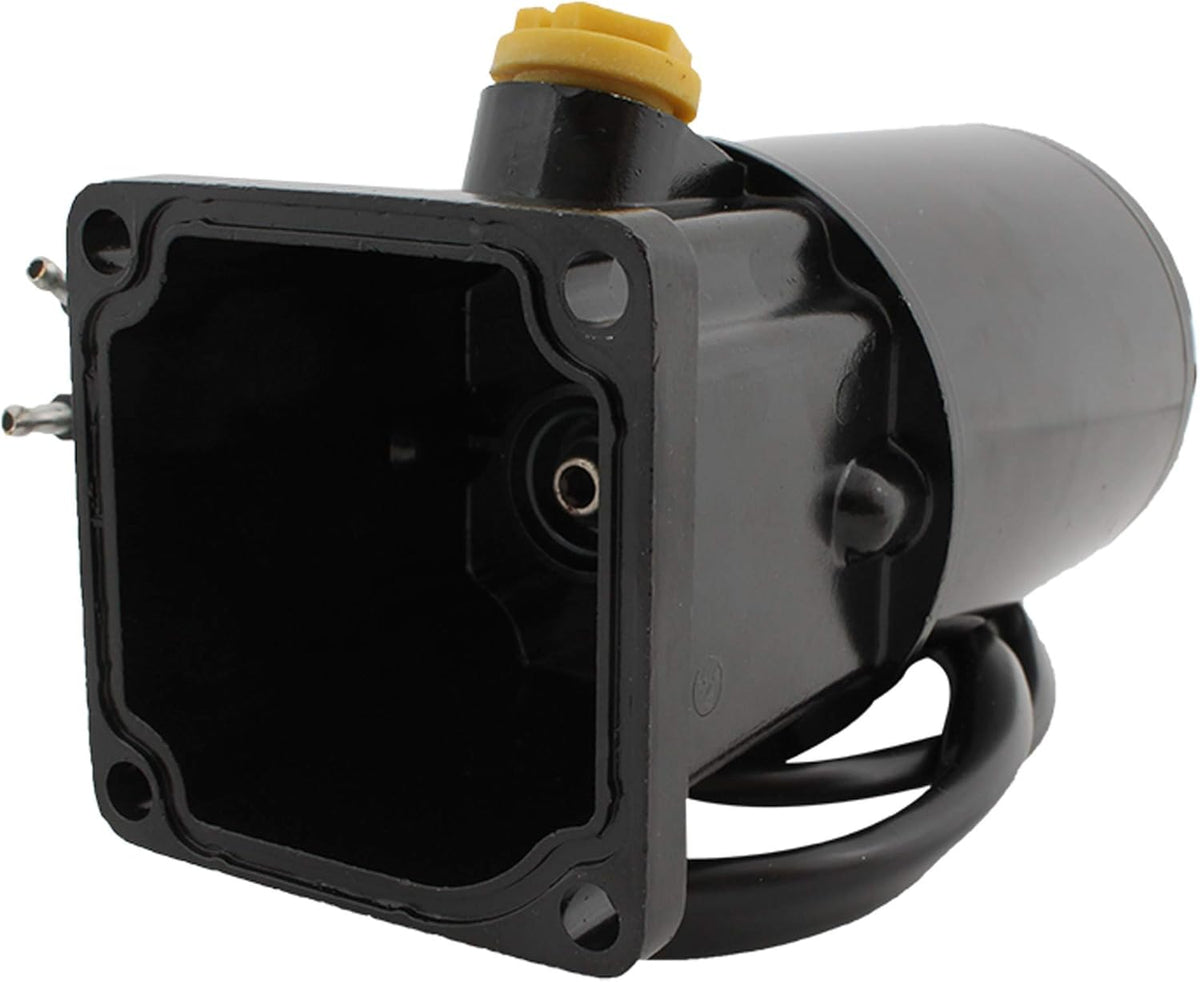

Tilt & Trim Motor Z415
Sale price
$23.90
Regular price $76.28
Skip to product information
Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 2.866in / 72.8mm, Length: 6.89in / 175mm, Shaft: Hollow Hex Shaft, Note: 2-Wire Connection, Note: Includes (2) 3-1/2 Foot Wire Harness w/Bullet, Connectors and Hardware Kit w/O-Ring, Brief: TILT MOTOR & RESERVOIR, Mercury / Mariner
Replaces OEM Numbers: API MARINE: PT497NK, ARCO MARINE: 6276, ARROWHEAD: TRM0047, EMP UnitS: 4-6777, J & N: 430-22008, LESTER: 10827, 10850, Mercury MARINE: 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 893907A02, QUICKSILVER: 8M6007531, SIERRA MARINE: 18-6777, WAI: 10827N
Compatible With/Replacement For: FORCE 1201 1990-1992, 1208 1990-1992, 120ELPT 1993-1994, 120ELPT 1996-1999, 120EXLPT 1993-1994, 120EXLPT 1996-1999, 1501 1989-1992, 1508 1989-1992, 150ELPT 1993-1994, 150EXLPT 1993-1994, 407 1992-1992, 408 1992-1992, 40EL 1993-1994, 40ELPT 1993-1994, 507 1991-1992, 508 1991-1992, 50EL 1993-1994, 50ELPT 1993-1994, 706 1991-1992, 708 1991-1992, 70EL 1993-1995, 70ELPT 1993-1995, 75EL 1996-1997, 75EL 1996-1999, 75ELPT 1996-1997
1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
Tilt & Trim Motor Z415
Sale price
$23.90
Regular price $76.28
Shipping calculated at checkout.
Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 2.866in / 72.8mm, Length: 6.89in / 175mm, Shaft: Hollow Hex Shaft, Note: 2-Wire Connection, Note: Includes (2) 3-1/2 Foot Wire Harness w/Bullet, Connectors and Hardware Kit w/O-Ring, Brief: TILT MOTOR & RESERVOIR, Mercury / Mariner
Replaces OEM Numbers: API MARINE: PT497NK, ARCO MARINE: 6276, ARROWHEAD: TRM0047, EMP UnitS: 4-6777, J & N: 430-22008, LESTER: 10827, 10850, Mercury MARINE: 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 893907A02, QUICKSILVER: 8M6007531, SIERRA MARINE: 18-6777, WAI: 10827N
Compatible With/Replacement For: FORCE 1201 1990-1992, 1208 1990-1992, 120ELPT 1993-1994, 120ELPT 1996-1999, 120EXLPT 1993-1994, 120EXLPT 1996-1999, 1501 1989-1992, 1508 1989-1992, 150ELPT 1993-1994, 150EXLPT 1993-1994, 407 1992-1992, 408 1992-1992, 40EL 1993-1994, 40ELPT 1993-1994, 507 1991-1992, 508 1991-1992, 50EL 1993-1994, 50ELPT 1993-1994, 706 1991-1992, 708 1991-1992, 70EL 1993-1995, 70ELPT 1993-1995, 75EL 1996-1997, 75EL 1996-1999, 75ELPT 1996-1997
1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
Power Trim Motor and Reservoir for Mercury & Mariner Outboards
Specifications:
Voltage: 12 Volts
Rotation:Reversible
Field Hsg OD: 72.8mm / 2.866in
Overall Length:175mm / 6.890in
Shaft Notes: Hollow Hex Shaft
Approximate Weight:4.72 lbs / 2.15 kg

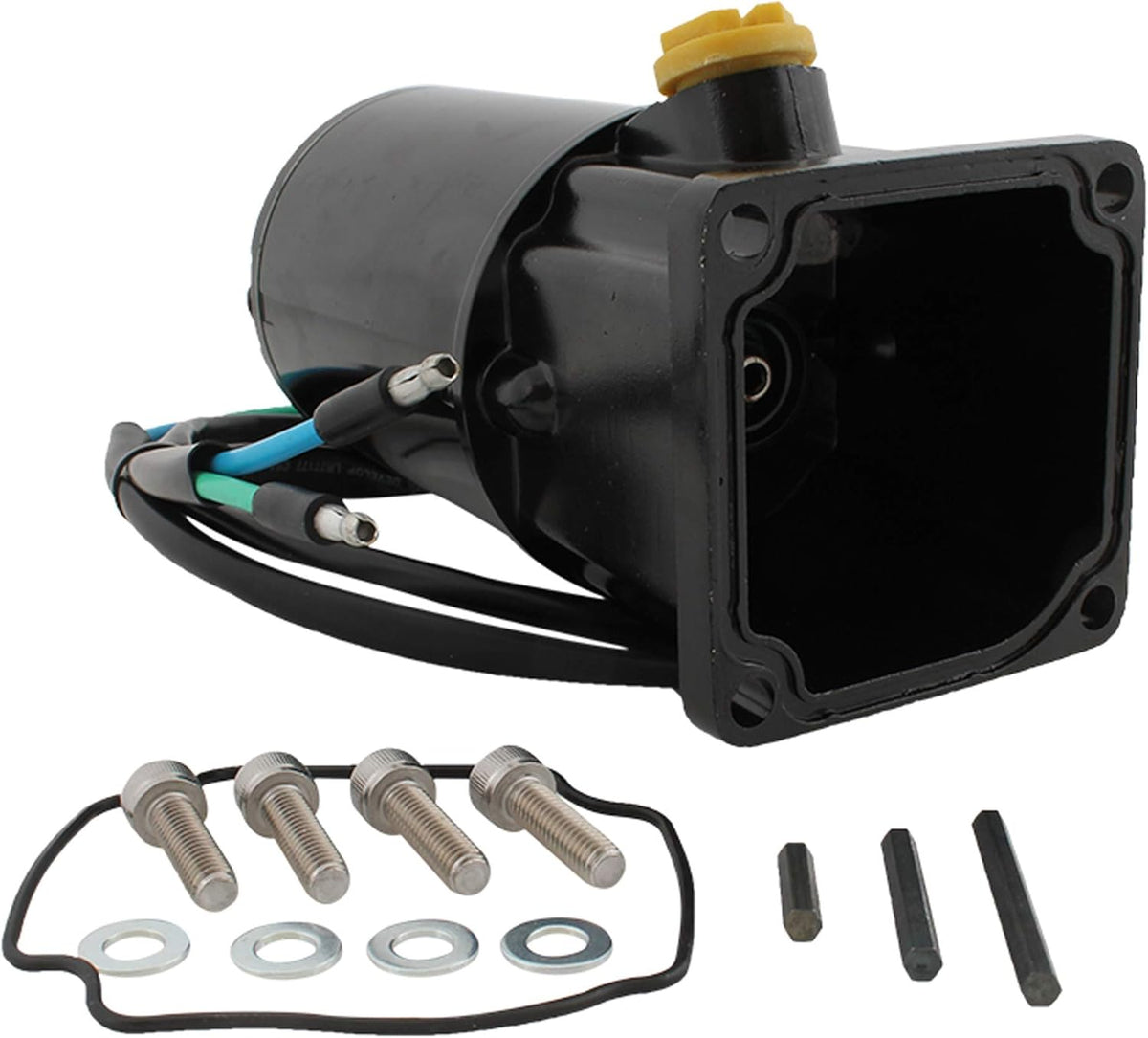

Notes: 2-Wire Connection Includes (2) 3-1/2 Foot Wire Harness With Bullet Connectors and Hardware Kit With O-ring
Applications:
Force Marine Tilt & Trim All Models 50-125 H.P.
Mercury Marine Tilt & Trim All Models 50-125 H.P.
Replaces these part numbers:
API Marine PT496NK-2
Arco Marine 6276
Lester 10827
Mercury Marine 809885A1, 809885A2, 809885T2, 811674, 813447, 831447, 819479A1, 819480A1, 885654T1, 885654T2
Sierra Marine 18-6777
Spider Marine TM10827
